Drill Sequence for TSIII Ultra-Wide Fixture – Ultra KIT (HULTRK)

6.0 mm Fixture (Length : 10mm)
Drill Sequence for TSIII Ultra-Wide Fixture 01

7.0 mm Fixture (Length : 10mm)
Drill Sequence for TSIII Ultra-Wide Fixture 02

Drill Sequence for TSIII Ultra-Wide Fixture – Taper Ultra KIT (HULTPK)

6.0 mm Fixture (Length : 10mm)
Drill Sequence for TSIII Ultra-Wide Fixture 03

7.0 mm Fixture (Length : 10mm)
Drill Sequence for TSIII Ultra-Wide Fixture 04

TS / GS fixture implant depth guide

• In case of normal or higher-quality bone, it is recommended to implant deeper than bone level by 1mm or less.
• In case of soft bone, it is recommended to implant to meet the bone level for maintenance of anchoring force.

TSIII Ultra-Wide Implant

Indication of TSIII Ultra-Wide Fixture

Immediate placement at the extraction socket Immediate replacement of the failed implant

TSIII Ultra-WideFeatures of TSIII Ultra-Wide
• SA (Sand blasted with alumina and Acid etched) Surface Treatment (Ra 2.5~3.0 ) Submerged wide diameter fixture with Internal hex connection
• Compatible with GS Regular abutment components
• Useful for immediate placement for posterior and replacing failed implants
• Optimal apex design allows the implants to achieve ideal initial stability
• Rigid motion with superstructure helps maintain stable connection
• Recommended Torque : below 40Ncm
• The actual length of TSIII Ultra-Wide Fixture is 0.5mm shorter than actual length. (Exception 7mm)

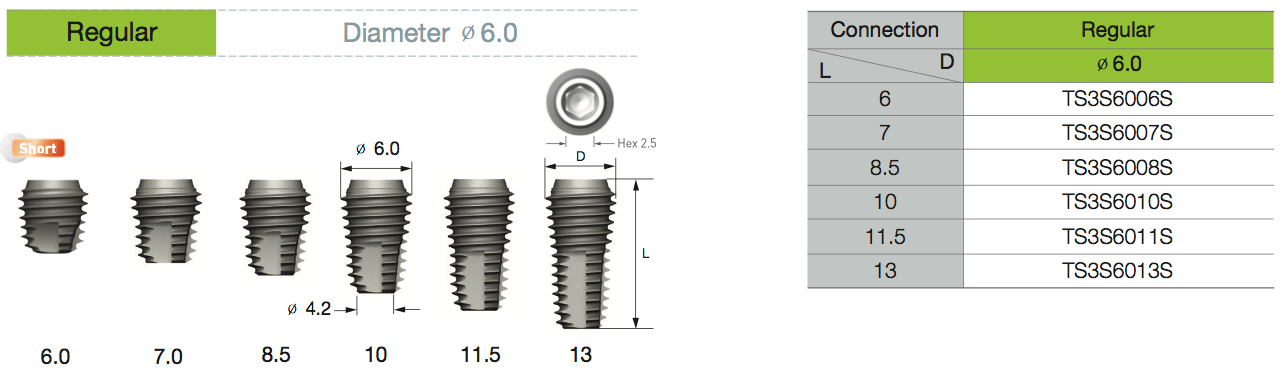

TSIII Ultra – Wide Fixture Order Code

Fixture Only
– Fixture : Product Code [ex : TS3S6010S]
Pre-Mounted Fixture [Simple Mount]
– Fixture + Simple Mount + Cover Screw : B + Fixture Product Code [ex : BTS3S6010S]
