SS Implant System

SS ImplantThe SS SA implant, developed with extensive R&D experiences of Osstem Implant, features an SA surface treatment that fully exploits the excellent pluri-potential capacity of osteoblastic cells. It shortens the bone healing time, and improves the secondary attachment force.

• Non-submerged type implant based on a one-stage surgery procedure

• Stable connection structure of internal octa and morse taper connection

• Can facilitate placement applicable to various bone quality and obtain superior bonding stability

• Osstem SA surface morphology and roughness increased by 45% compared to RBM treatment

Characteristics of SS Implant System
SA: Sand blasted with alumina and Acid etched surface

• Optimal morphology: Combination of crater and micro-pit
• Optimal surface roughness: Ra 2.5~3.0㎛
• Early cell response: 20% faster than RBM
• Early bone healing: 20% faster than RBM
• Early loading possible after 6 weeks of placement.

OSSTEM SA surface morphology and roughness increased by 45% compared to RBM treatment. SEM (Scanning Electron Microscope) image

SSII SA Fixture

SSII SA Fixture• Non-submerged implants based on one-stage surgery with internal octa and 8°taper connections
• Optimum screw thread design for optimum SA surface
• Straight body design for easy adjustment of insertion depth
• Powerful self-threading effect using corkscrew thread
• Recommended insertion torque : 40Ncm or lower
※ In single implant cases for posterior region, use of fixture at least 4.5mm in diameter is recommended
NoMount fixture order code
: fixture product code (ex : SS2R4011S18)
Pre-Mounted fixture order code (fixture + simple mount + cover screw)
: A + fixture product code (ex : ASS2R4011S18)

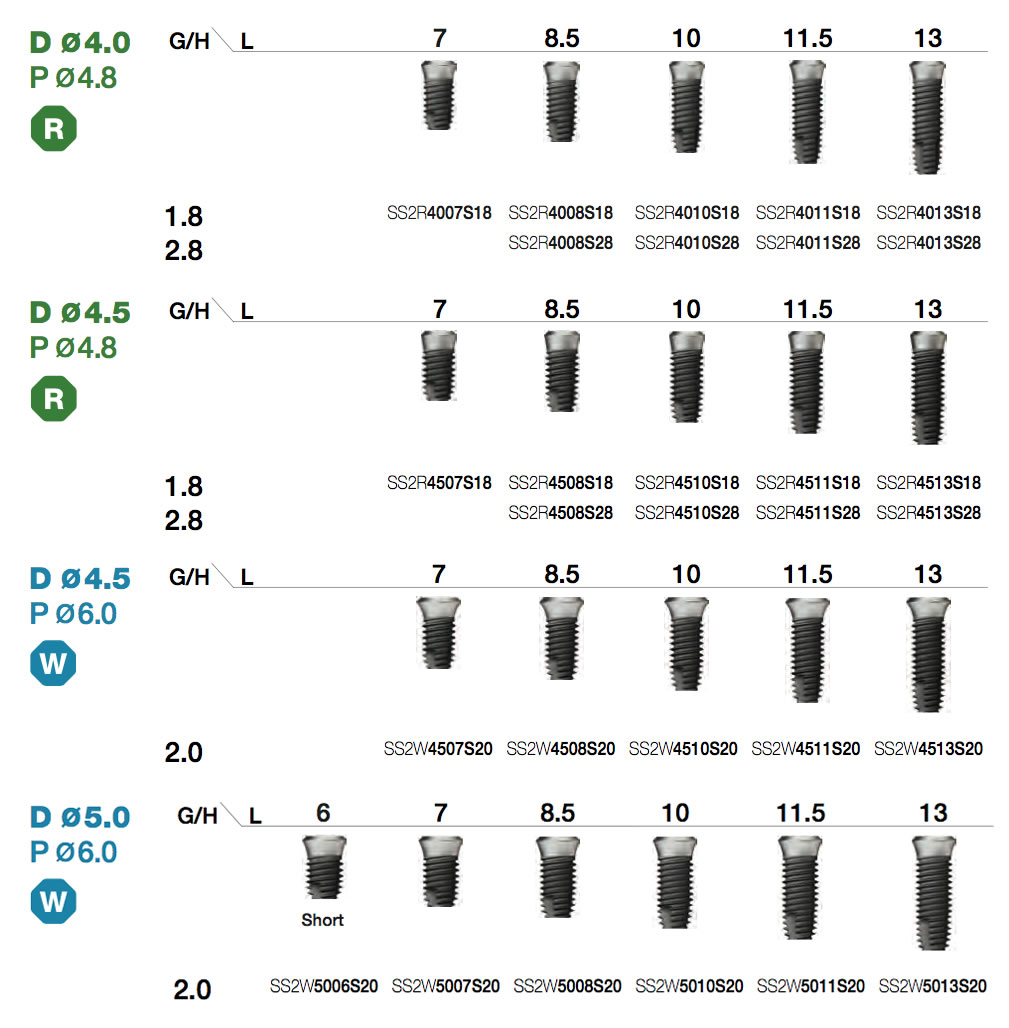

SSII SA Fixture Implant Types

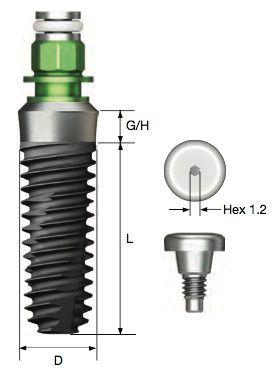

SSIII SA Fixture

SSIII SA Fixture• Non-submerged implants based on one-stage surgery with internal octa and 8°taper connections
• Optimum screw thread design for optimum SA surface
• Taper body design with superior initial stability
• Powerful self-threading effect using corkscrew thread
• Acquires the initial stability needed in immediate loading even in soft bone Ultra-wide
• Immediate placement in tooth extraction case and useful in exchanging a failed
implant
• With its optimized apex design, capable to obtain stable initial stability in the cases of tooth extraction and at the bottom 3mm
• Recommended insertion torque : 40Ncm or lower
※ In single implant cases for posterior region, use of fixture at least 4.5mm in diameter is recommended

NoMount fixture order code
: fixture product code (ex : SS3R4011S18)
Pre-Mounted fixture order code (fixture + simple mount + cover screw)
: A + fixture product code (ex : ASS3R4011S18)

SSIII SA Fixture Implant types

SSIII CA Fixture

SSIII CA Fixture• Non-submerged implants based on one-stage surgery with internal octa and 8°taper connections
• Superior hydrophilic SA surface encapsulated in calcium solution
• Taper body design with superior initial stability
• Powerful self-threading effect using corkscrew thread
• Acquires the initial stability needed in immediate loading even in soft bone
Ultra-wide
• Immediate placement in tooth extraction case and useful in exchanging a failed implant
• With its optimized apex design, capable to obtain stable initial stability in the cases of tooth extraction and at the bottom 3mm
• Recommended insertion torque: 40Ncm or lower
※ In single implant cases for posterior region, use of fixture at least 4.5mm in diameter is recommended

NoMount fixture order code
: fixture product code (ex : SS3R4011C18)

SSIII CA Fixture Implant Types

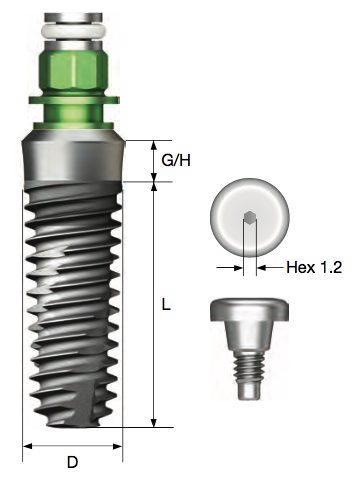

SSIII HA Fixture

SSIII HA Fixture
• Non-submerged implants based on one-stage surgery with internal octa and 8°taper connections
• Premium surface coated with high crystalline HA
• Taper body design with superior initial stability
• Powerful self-threading effect using corkscrew thread
• Acquires the initial stability needed in immediate loading even in soft bone
• Recommended insertion torque: 35Ncm or lower
※ In single implant cases for posterior region, use of fixture at least 4.5mm in diameter is recommended
※ HA fixture is not recommended in hard bone due to possibility of coating layer cracks and desquamation

Pre-Mounted fixture order code (fixture + simple mount + cover screw)
: A + fixture product code (ex : ASS3R4011H18)

SSIII HA Fixture Implant Types
