OSSBuilder

OSSBuilder Diagram

BUILT TO PROMOTE BONE FORMATION

OSSBuilder is a non-absorbable, titanium membrane used to regenerate periodontal tissue. OSSBuilder promotes bone formation in areas where natural bone defect has occurred.
• Customised for all degrees of bone defect
OSSBuilder is categorised as 1 wall augmentation, 2 wall augmentation, 3 wall augmentation according to the degree and form of bone defect. The membranes are then smart-adapted to fit the loss area.
• Designed to be profoundly user-friendly
OSSBuilder is pre-formed 3D design that does not require additional trimming or bending.
• Punctured for better blood supply
OSSBuilder is covered with pore-like holes to increase the blood supply of the surgical site.
Choose product according to the form and degree of bone defect, and also gingival tissue volume.

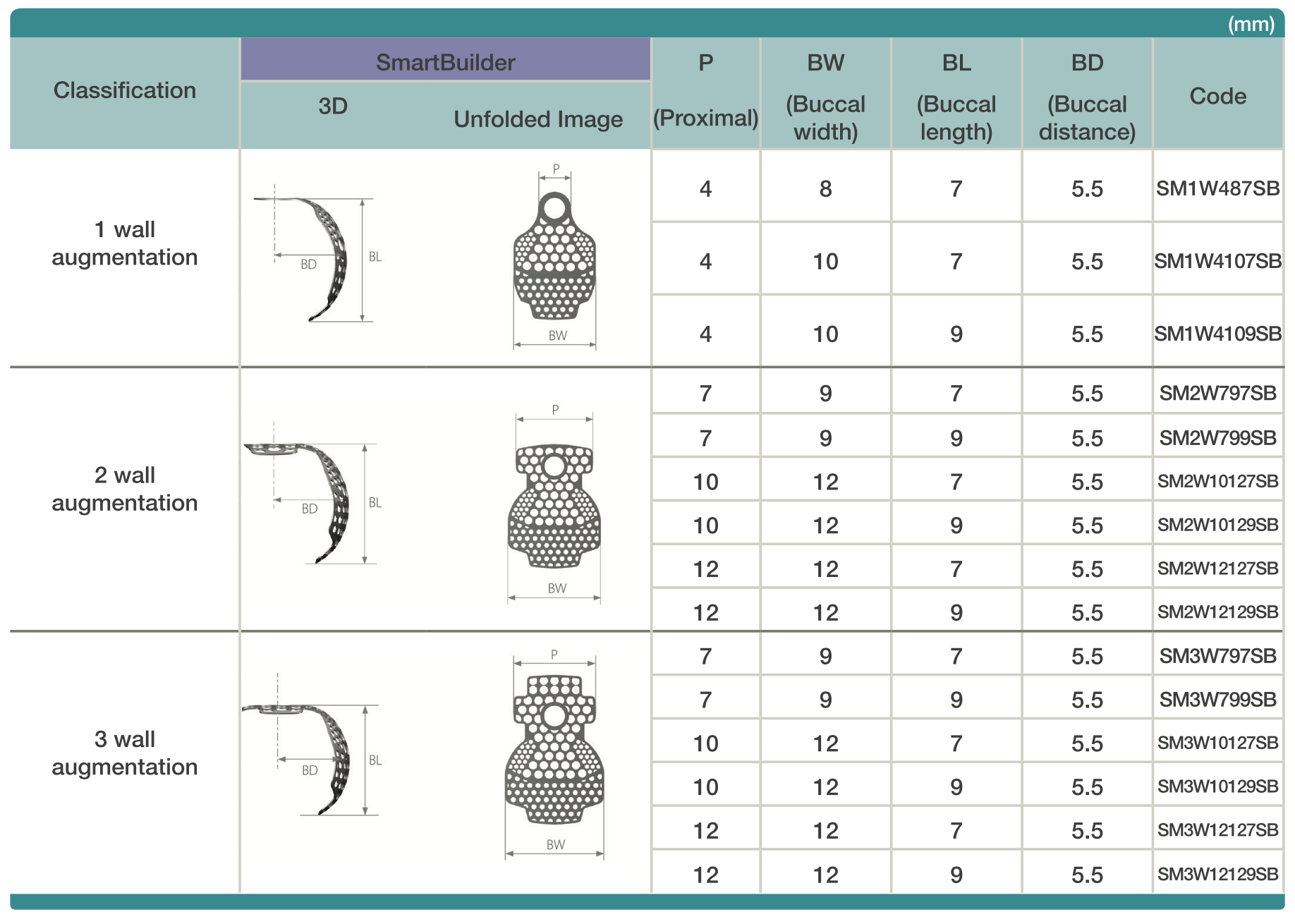

OSSBuilder Classifications

SUITABLE FOR ALL SITUATIONS IN ALL PATIENT TYPES

Choose product according to the form and degree of bone defect, and also gingival tissue volume.
OSSBuilder Suitable for All Situations

SMARTER SOLUTIONS

Smart Handling
• Instantly mould with ease, or just use as formed. Applicable for both one-stage and two-stage surgeries. Easily fit and remove.
Smart Healing
• Extreme durability and a wrinkle-free sphere-shaped appearance guarantee minimised membrane exposure, Sufficiently solid for reliable bone healing regeneration.

COMPONENTS

OSSBuilder Components

USER GUIDE

• Check the area of bone defect and select product
• Using a defect gauge, measure the horizontal and vertical bone defect of the surgical site to select the right type:

OSSBuilder User Guide

• Select the type of extension based on the vertical bone defect and place the Extension on the Implant. Use a 1.2 Hex driver to tighten the Extension in place with Torque applications of 12-15Ncm
• Graft the necessary amount of bone where the bone defect has occurred
• Place the selected OSSBuilder over the Extension. Bend or trim the product to fit the area of bone defect before fixing the SmartBuilder in place
• Use the Healing Caps or Cover Caps to fix the SmartBuilder in place. Tighten the Healing Cap with a 1.2 HEX driver, and the Cap using a Cap driver.
• Suture the gum of the surgical site closed
• Remove the Healing Caps or Cover Caps once the bone regeneration process has been completed. It’s easier to remove the Extension using a 1.2HEX driver as the SmartBuilder will be simultaneously removed.
• Sequence of user’s guide:
OSSBuilder Sequence

CAUTION

• The OSSBuilder, Extension, Healing Caps or Cover Caps must all be gamma irradiation sterilized and be disposed of after single use • Product must not be used for any other than GBR procedures
• All surgical equipment must be sterilised in an autoclave before use. (For a duration of 15 minutes at a temperature of 132 degrees Celsius)
• Undergo procedures as required per case, but extreme procedures my expose the membrane to cause infections and impair bone formation

Dr. Jo yong-suk

Dr. Jo yong-suk Apsun

Dental Clinic

– Seoul National University, Dental Medicine studies
– Clinical Professor, Chungbuk University
– Clinical Professor, Seoul National University


Dr. Jun In-sung

Dr. Jun In-sung

H Dental Clinic

– Seoul National University, Dental Medicine studies
– Exchange Professor, Harvard University
– Clinical Professor, Seoul National University


Dr. 0 Sang-yun

Dr. 0 Sang-yun

Acro Implant Centre

– Chosun University, Dental Medicine studies
– Director, A.T.0 Implant training session
– Chief, OMS (Oral and Maxillofacial surgery) centre, Chongju University


Dr. Yun Jong-III

Dr. Yun Jong-III

Yun Dental Clinic

– Kyunghee University, Dental Medicine studies
– Clinical Professor & Expert, Seoul National University


Dr. Kim Yong-jin

Dr. Kim Yong-jin

Apsun Dental Clinic

– Dankook University, Dental Medicine studies
– Director, Concepts of Balanced Orthognathic Surgery of Korea

OSSBuilder Sequence 1

OSSBuilder is a highly useful material that has renewed the previous perceptions of titanium mesh and can be easily applied to different clinical cases.

OSSBuilder Sequence 1

OSSBuilder is capable of offering reliable and predictable results in terms of bone formation and managing the soft tissues.

OSSBuilder Sequence 1

OSSBuilder boasts high convenience because it doesn’t require bending or cutting, and also doesn’t need a separate screw to keep it fixed.

OSSBuilder Sequence 1

Even first-time users can expect predictable bone regeneration using the SmartBuilder.

OSSBuilder Sequence 1

OSSBuilder is in a three dimensional form tailored to fit all types and sizes of the bone defect, meaning it’s a completed form of titanium membrane that can be used without any additional adjustments.
