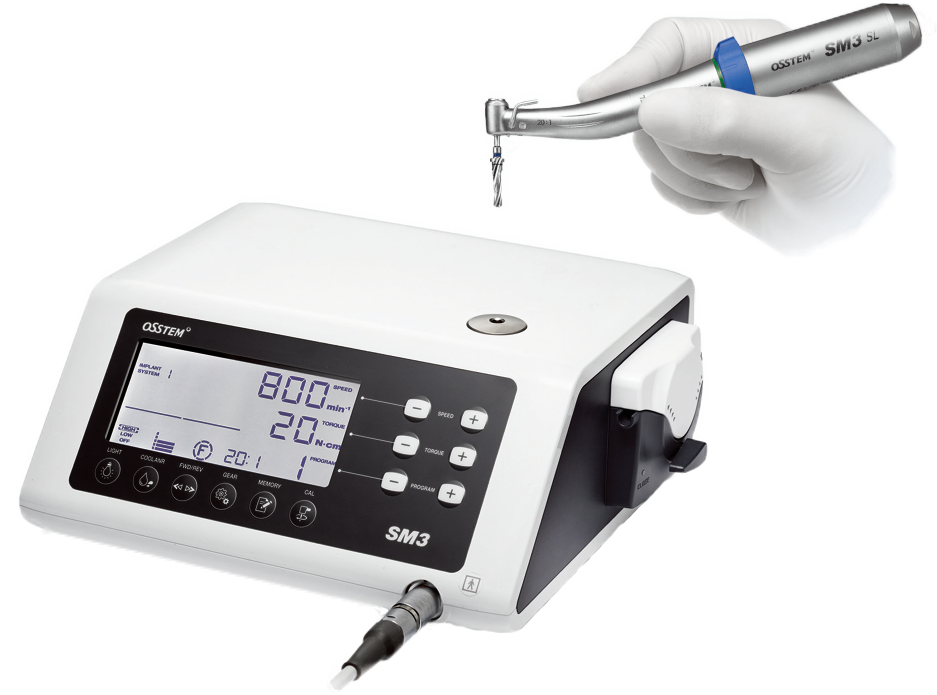

Osstem Surgical Motor (SM3)
Equipment - (Motors)

Strong Power! Amazing Value
  • Powerful torque (80Ncm)
  • LED LUX (3 steps light level control)
  • Small and light motor
  • Advanced torque calibration system
  • Large LCD display and various information indicator
    • Download Brochure ⟳
    Powerful Torque (Max. 80Ncm)



    LED LUX (3 steps light level control)



    Small and light motor



    Advanced torque calibration system



    Large LCD display & various information indicator

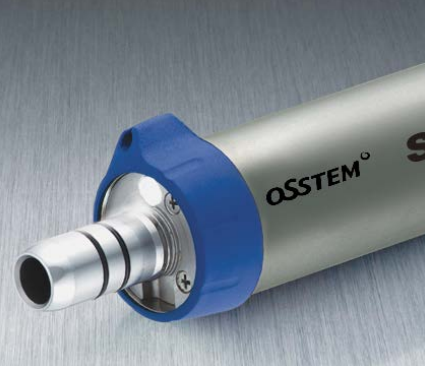

    LED LUX

    LED light similar to natural light
    Approx. 32,000 LUX
    Brightness adjustment in three steps

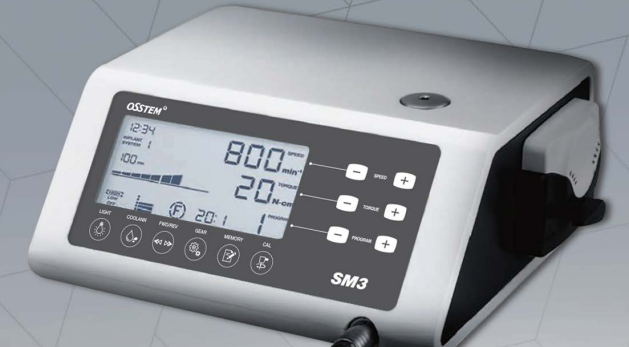

    Large LCD Display & Various Information Indicator

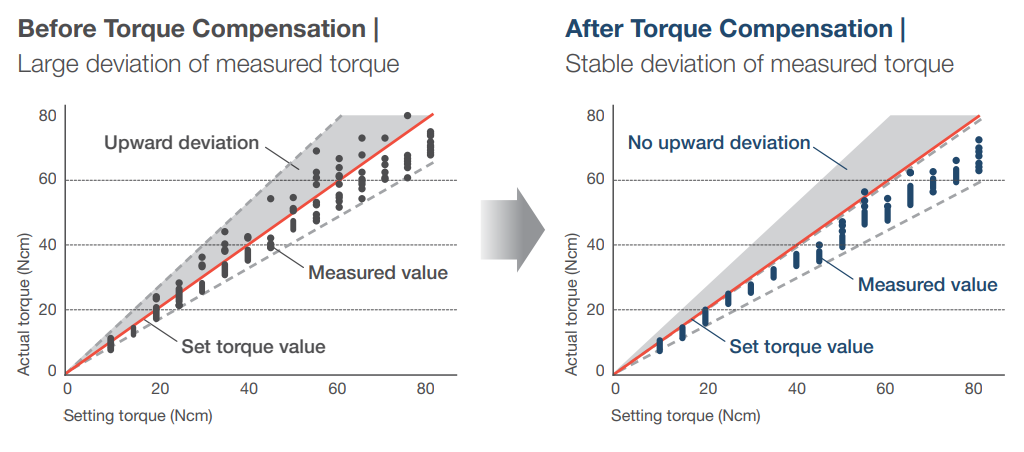

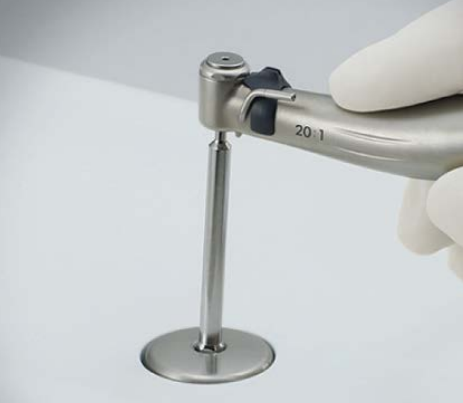

    Advanced Torque Calibration System

    Calibration function provides low deviation torque value and makes safe operation

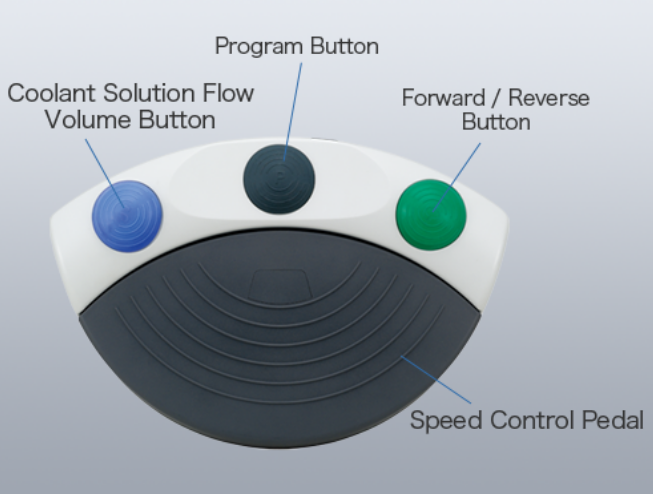

    Foot Control

    The Foot Control is user friendly and allows operation of all functions within the preset parameters without touching the control panel to avoid accidental activation of the micromotor outside the preset limits.

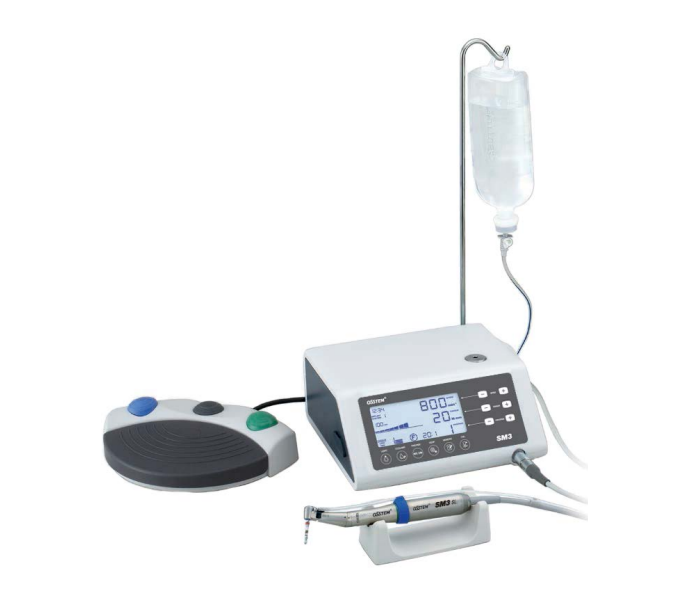

    Optic Model: Osstem Surgical Motor Series 3 (SM3)
    Order Code: Y1003437

    Contents

    Control Unit without Data Storage Facility / SGL70M LED Micromotor /
    SFC-78 Foot Control / X-SG20L Optic Handpiece (20:1 Reduction) /
    Irrigation Tube (5 pcs.) and Other Accessories

    TECHNICAL SPECIFICATION

  • 265mm(width) x 220mm(length) x 100mm(height)
  • Rotation Speed : 200 to 40,000rpm
  • Motor Cable Length : 2m
